A well-organized garage workshop can make every project easier and more enjoyable. With smart layouts, you can save space, keep your tools accessible, and create a workspace that inspires creativity. From small garages to large spaces, having a plan for storage, workbenches, and floor layout is key. These garage workshop layout ideas show practical, stylish ways to transform your garage into a functional DIY haven, perfect for hobbyists, car enthusiasts, and professionals alike.
Heavy Duty Iron Garage Tool Organizer Storage
- 7.5″D x 26″W x 8.27″H
- 150 Pounds
- 7 Slots 3 Layers
- Wall Mount
48-Inch Workbench with Power Outlets and Light
- 61.75 inches
- 25″D x 48″W x 62″H
- 88.5 Pounds
- Painted
Assembled Tool Chest with Wheels, Detachable Tool Box
- 13″D x 24.4″W x 42.9″H
- 13 inches
- Alloy Steel
- Steel

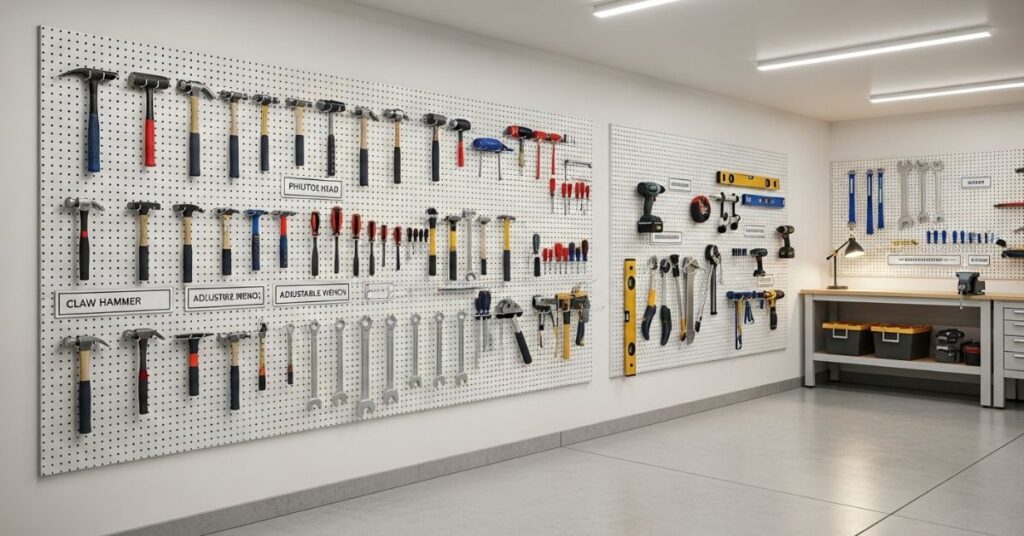

1. Wall-Mounted Tool Storage for Easy Access
Wall-mounted tool storage is ideal for keeping your workspace organized and clutter-free. By hanging tools on pegboards or rails, you can see everything at a glance and avoid cluttered drawers. Tools are easily accessible, and small accessories, such as screws or nails, can be stored in clear bins on the wall.
This setup works well for small or large garages. It frees up floor space while keeping tools organized and visible. Adding labels and hooks ensures that every item has its place, saving time and making projects more efficient. Wall-mounted storage also adds a professional look to your garage workshop.
Read More: Space Saving Home Garage Ideas to Maximize Every Inch

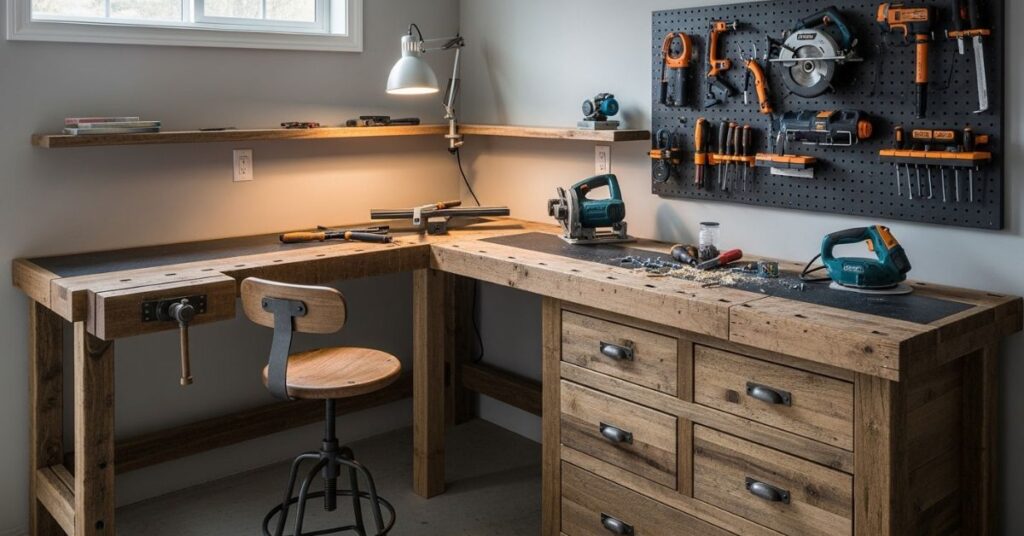

2. L-Shaped Workbench Layout for Maximum Efficiency
An L-shaped workbench uses corner space efficiently and provides two connected surfaces for multitasking. One side can be dedicated to woodworking or repairs, while the other holds power tools and small equipment. The layout allows you to move smoothly between tasks without feeling cramped.
This setup works especially well for medium to large garages. Cabinets or drawers under the bench provide extra storage for tools and supplies. You can also add pegboards above for frequently used items. The L-shape maximizes workspace while keeping everything within easy reach.

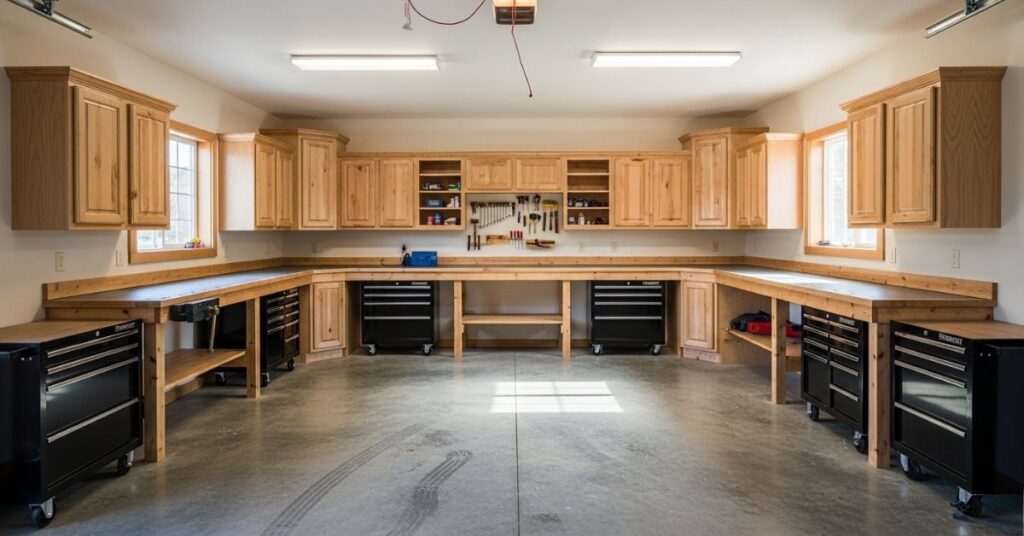

3. U-Shaped Garage Workshop Layout for Multi-Tasking
A U-shaped layout gives you three connected work surfaces, creating dedicated zones for different tasks. One side can be for woodworking, another for car maintenance, and the third for general projects. The central open space allows you to move freely and handle larger materials.
This design is ideal for garages that can accommodate multiple activities at once. You can place heavy machinery along the edges and keep work surfaces clear. The U-shaped layout is functional, giving every tool a home and keeping your workflow smooth and organized.

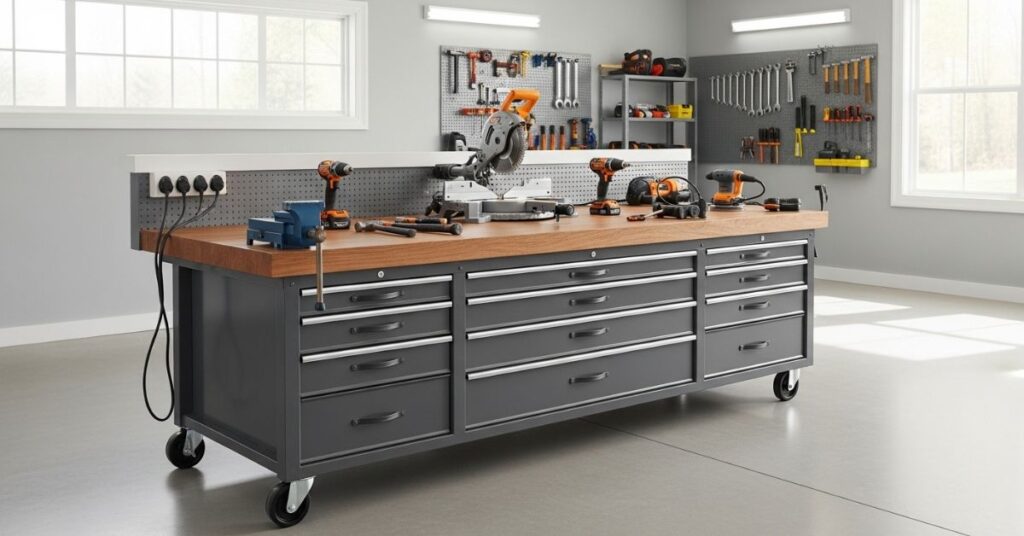

4. Rolling Workbench for Flexible Workspace
A rolling workbench adds flexibility to your garage workshop. It can be moved wherever it is needed, creating extra workspace or clearing the floor for larger projects. The bench can hold tools, clamps, and a small vice for various DIY tasks.
This solution is great for garages with limited space or for projects that require changing work areas. Many rolling workbenches come with storage drawers and shelves, allowing you to carry essential tools with you. Mobility and storage in one piece make it a smart investment.
5. Ceiling Storage Solutions to Free Floor Space
Ceiling storage takes advantage of unused vertical space, freeing up the floor for work or parking. You can store bins, boxes, and bulky items above your work area. It is especially helpful for small garages where every inch counts.
Using ceiling racks ensures your tools and materials are safe and accessible without crowding the workshop. Items can be labeled for easy identification. This solution works with any workshop style and keeps your garage organized while maintaining open space for projects.

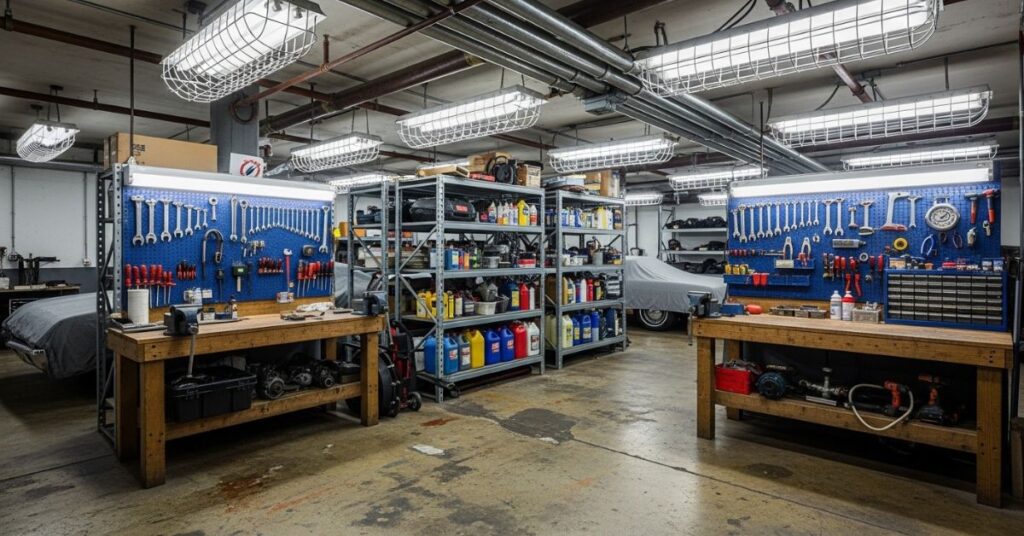

6. Industrial-Style Garage Workshop Layout
An industrial-style garage workshop combines strength and functionality. Metal shelves, heavy-duty workbenches, and durable flooring make it ideal for tough projects. Exposed pipes and lighting add a modern, raw look. This style focuses on long-lasting materials while keeping the workspace organized and visually striking.
This layout works well for large garages or hobbyists who use power tools frequently. The open shelves make tools easy to access, while the rugged surfaces handle heavy-duty work. Combining practicality with a stylish industrial look creates a workspace that is both functional and inspiring.

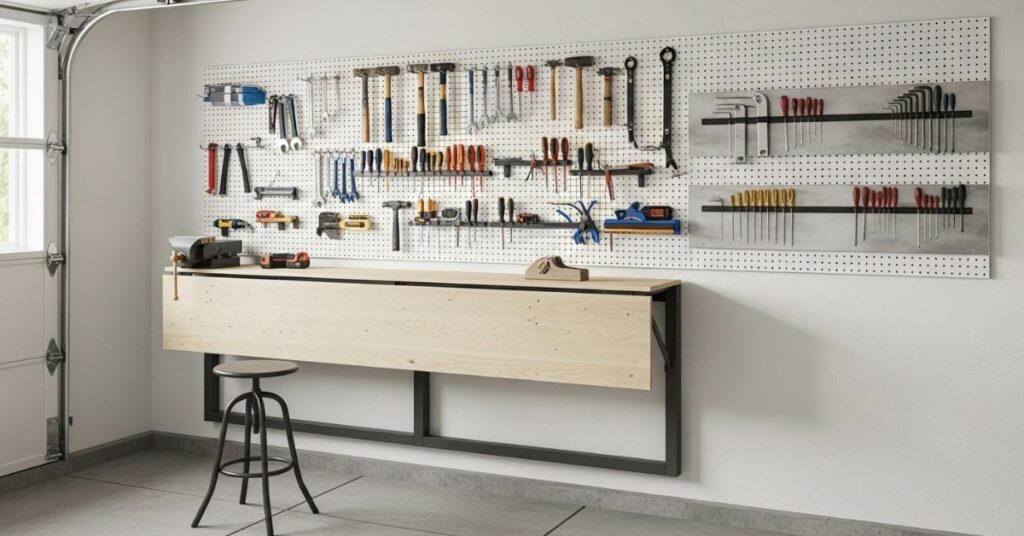

7. Compact Garage Workshop for Small Spaces
Compact garage workshops make smart use of limited space. Foldable benches and vertical storage keep tools accessible without cluttering the floor. Magnetic strips and wall hooks allow you to store hand tools efficiently. Every inch is designed to maximize functionality and maintain a clean, open area.
This layout is perfect for hobbyists in apartments or small homes. By using walls, corners, and clever storage, you can fit a functional workshop into a tiny garage. Even small spaces can be organized, visually appealing, and fully equipped for DIY projects.
8. Garage Workshop with Dedicated Woodworking Zone
A dedicated woodworking zone keeps tools, materials, and work surfaces focused on carpentry. Having a specific area for saws, chisels, and clamps reduces clutter elsewhere. Wood storage racks nearby make accessing materials quick and easy, helping your projects stay organized and flowing smoothly.
This layout is ideal for woodworking enthusiasts who need a clear, safe workspace. With proper lighting and ventilation, your woodworking zone becomes both practical and enjoyable. Organization and dedicated areas allow you to focus on precision and quality in every project.

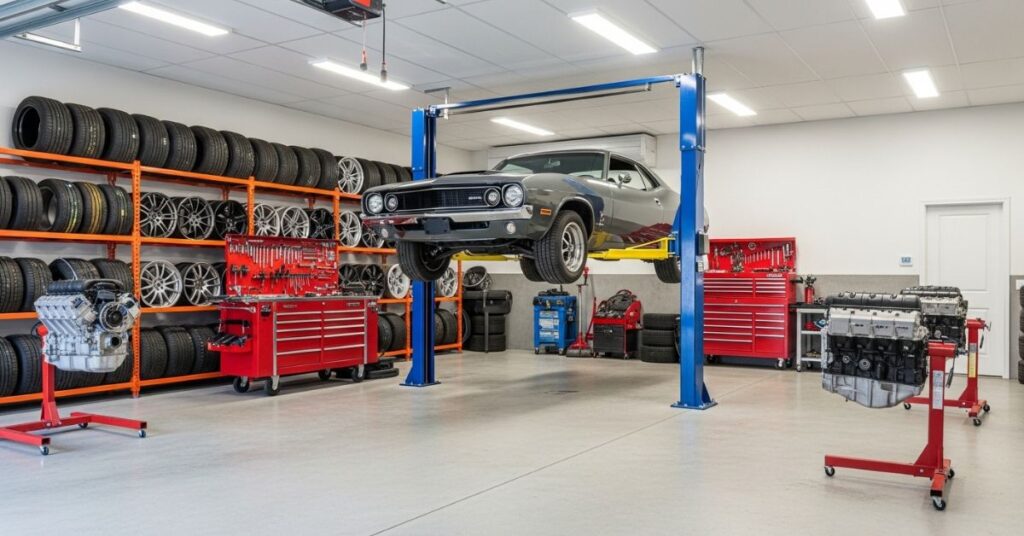

9. Garage Workshop with Automotive Focus
A garage workshop focused on automotive tasks prioritizes vehicle maintenance and repair. Space is allocated for lifts, tool chests, and spare parts storage. Clear floors ensure safety and allow easy movement around vehicles. Every tool and accessory is placed for efficiency when working on cars or motorcycles.
This layout suits car enthusiasts or DIY mechanics. With proper lighting and organization, the garage becomes a functional space for repairs, modifications, and detailing. Having a dedicated automotive focus improves workflow and ensures all necessary equipment is close at hand.
10. Open Floor Plan for DIY Creativity
An open floor plan encourages creativity and flexibility. Movable workbenches, modular storage, and clear floors allow you to change the layout depending on your project. This design is ideal for large-scale or multiple DIY projects, giving freedom to move materials and tools easily.
The open layout works for makers, crafters, and hobbyists who need room to experiment. With natural light and versatile work areas, your garage workshop becomes an inviting space to work on any project, from small crafts to larger, complex builds.
11. Garage Workshop with Natural Light
Natural light improves both comfort and productivity in a garage workshop. Large windows or skylights reduce the need for artificial lighting during the day, making it easier to see details while working. Sunlight also creates a pleasant and inviting atmosphere, helping you focus on tasks and enjoy the workspace.
This layout works especially well for DIY enthusiasts who spend long hours on projects. Positioning workbenches near windows ensures maximum illumination, while keeping storage along walls maintains an open feel. A well-lit garage also enhances safety and prevents mistakes during precise work.
12. Garage Workshop with Multi-Level Shelving Units
Multi-level shelving makes the most of vertical space in a garage workshop. By stacking shelves, you can store more items without cluttering the floor. Labeling bins or containers ensures tools, materials, and supplies are easy to find, reducing time spent searching for items and keeping your workflow smooth.
This layout is perfect for hobbyists or professionals who need to store a variety of tools and materials. Using strong shelves that reach higher walls creates room for rarely used items while keeping daily essentials within easy reach. The result is an organized, efficient, and tidy workshop.

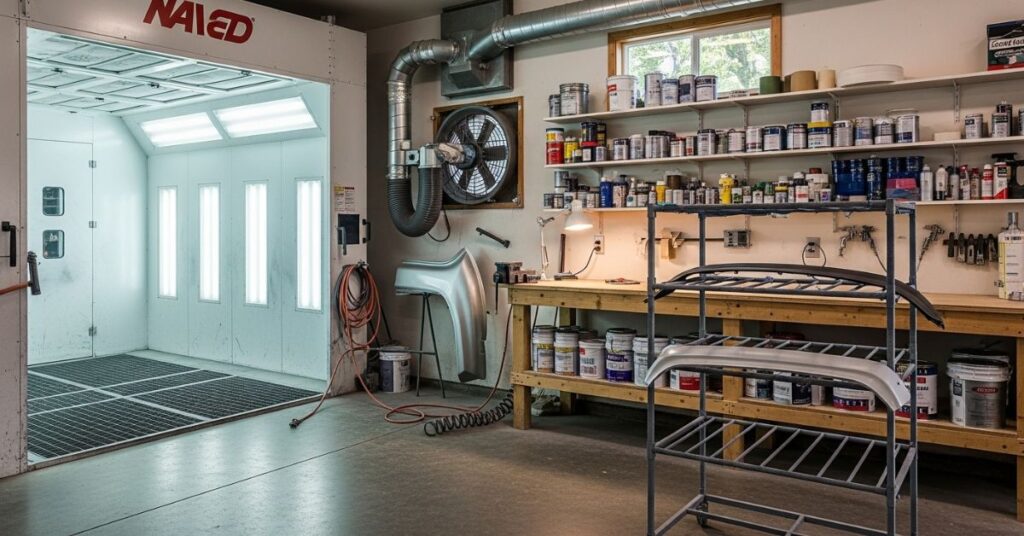

13. Garage Workshop with a Dedicated Painting / Finishing Zone
A dedicated painting or finishing zone helps keep messes contained and projects protected. Proper ventilation, lighting, and storage for paints and brushes create a safe and organized workspace. This zone allows you to focus on finishing tasks without worrying about spills or dust affecting other areas.
This layout is ideal for woodworking, DIY furniture projects, or car enthusiasts who need a clean, controlled space for paint and finishes. Keeping this zone separate ensures other areas stay functional, while the setup improves safety, efficiency, and professional-quality results.

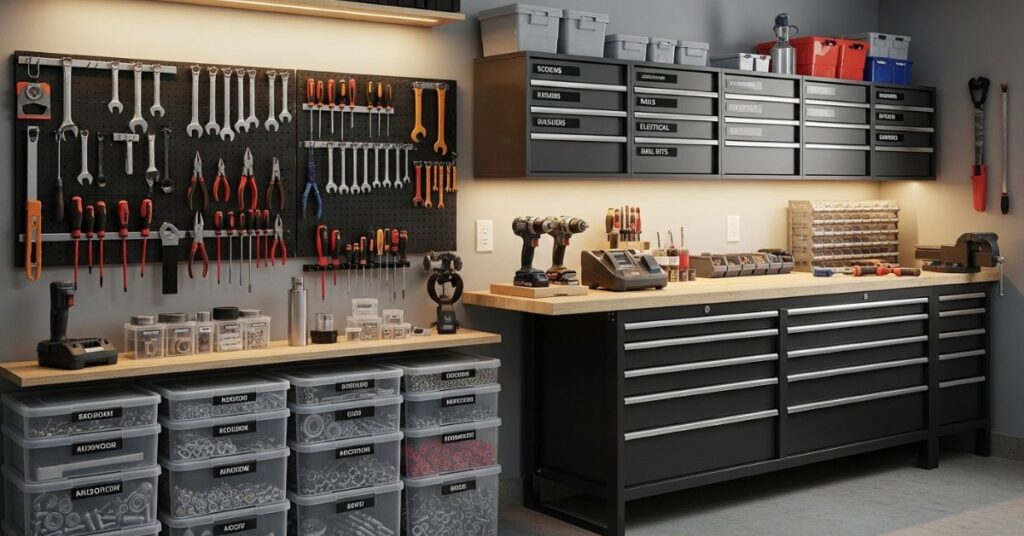

14. Garage Workshop with Smart Storage for Small Tools
Smart storage for small tools prevents clutter and saves time. Modular drawers, clear boxes, and wall-mounted organizers allow you to see and access everything quickly. Each tool has its place, which reduces frustration and keeps your garage looking tidy and professional.
This setup works perfectly for hobbyists, craftsmen, and anyone handling numerous small tools or hardware. Using labels and modular systems ensures everything stays organized and accessible. Smart storage makes even the smallest garage highly functional and visually appealing, turning it into a dream workspace.
Summary
A well-planned garage workshop balances organization, functionality, and creativity. By using natural light, multi-level shelving, dedicated painting zones, and smart small tool storage, you can maximize space and efficiency. From large garages to compact spaces, these layouts provide practical, stylish solutions for DIY projects, woodworking, car maintenance, or general hobby work. A thoughtful design turns any garage into a productive and inspiring workspace.
